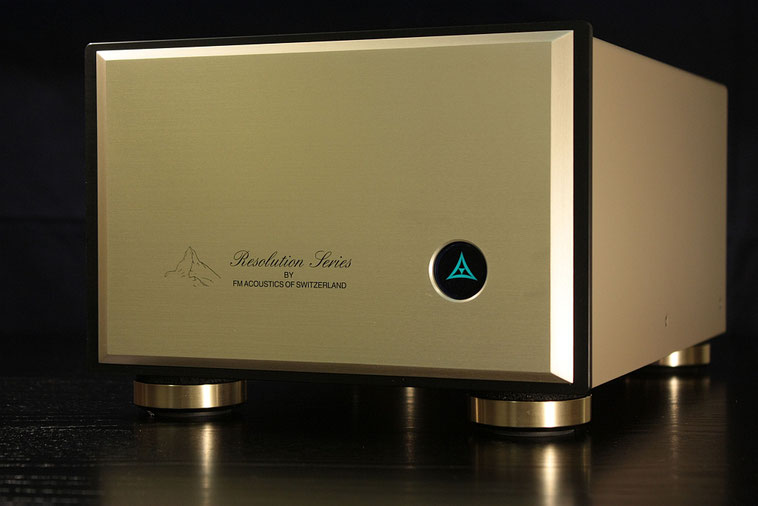

Resolution Series FM 111
The amplifier for the Connoisseur
Discrete, dynamic, natural, less than obtrusive, tiny in fact; definitely not the unit for those that need to show off.
But stack it up against any amp whatever the size - and the surprise will be inverse to its diminutive size...
So far, Resolution Series power amplifiers came as stereo units. When designed correctly, a 2-channel amplifier can perform superbly. Some
applications, however, demand a single channel power amplifier. For these, the new FM 111 and FM 115 were developed.
The FM 111 employs full Resolution Series technology and uses the same advanced
enhanced Class A stages and superb protection systems. It is the correct choice when ultimate signal reproduction in a single channel power amplifier is required.
FM ACOUSTICS products are designed to have no excessive size or weight, which the FM 111 shows in an exemplary manner. The FM 111 is small, efficient and
self-contained. While its size is diminutive, its performance is definitely not!
The FM 111 can be placed next to the speakers or in any remote location (even when power is switched on remotely the FM 111 keeps all the features of delayed
turn-on, all protection circuitry intelligence etc). Within 10 seconds it is fully operational and sounds perfect (unlike other power amplifiers that need a long warm up time).
The FM 111 is a dream come true for thousands who already own an FM 122 or an FM 155 (they have the same width) and for all those who require an efficient
single channel power amplifier of Resolution Series sound and build quality.
Combining the FM 111 with the FM 122, FM 133, FM 155 it is possible to assemble a top class reproduction system that will far outperform anything costing up to
four times the price (and up to five times the bulk and weight).
Specifications
Minimum Power Output:
230 W peak into 8 Ohms
360 W peak into 4 Ohms
500 W peak into 2 Ohms
115 W RMS into 8 Ohms
180 W RMS into 4 Ohms
250 W RMS into 2 Ohms
Max. Output Voltage: 100 V pp.
Max. Output Current:
Unlimited repetitive peak output current.
More than 20 A continuous per channel.
No output or DC fuses, absolutely no form of current-, voltage- or any other kind of limiting.
Distortion: 0,005% THD
Bandwidth including Input Filter:
Less than 1 Hz to 60 kHz;
if required, internally settable to any frequency between 1 kHz and 60 kHz (Low-Pass) and
1 Hz to 1 kHz (High-Pass).
Risetime at Full Power: 3 us
Hum and Noise:
Below full power typically better than -110dB
Minimal unweighted:
better than -100 dB (20Hz-20kHz).
Input:
Proprietary electronically balanced discrete enhanced class A circuitry, floating ground, non- inverting or inverting mode.
Optimal performance with either balanced or unbalanced (single-ended) sources. Unbalanced sources are automatically balanced right at the input of the FM 111.
Input Sensitivity:
1,2 V RMS for full output
Input Impedance:
At all level settings from balanced and unbalanced sources: 40 kOhms
Interference Rejection:
90 dB typically, better than 80 dB at 50 Hz, even better at other frequencies.
Load Impedance:
No minimum impedance. The amplifier is designed for 1 Ohm to 10'000 Ohm systems. It can drive any speaker impedance (even below 1 Ohm) with dynamic (music) signals without any limiting,
compression or other negative effects on the audio signal.
Despite this, the amplifier is fully protected against short circuits, open circuits and all other adverse conditions via a unique on-board computer that continuously surveys all important parameters.
